VERTICAL BALER
Baler B5 Wide
The B5 Wide has been constructed to service users with smaller amounts of waste, but it is suitable to handle bulky materials.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler B5 Wide
BRA-IN is a data based communication service. Access live status of your machines and receive immediate notification if a baler needs attention.
Intelligent baler data collection reduces baler downtime

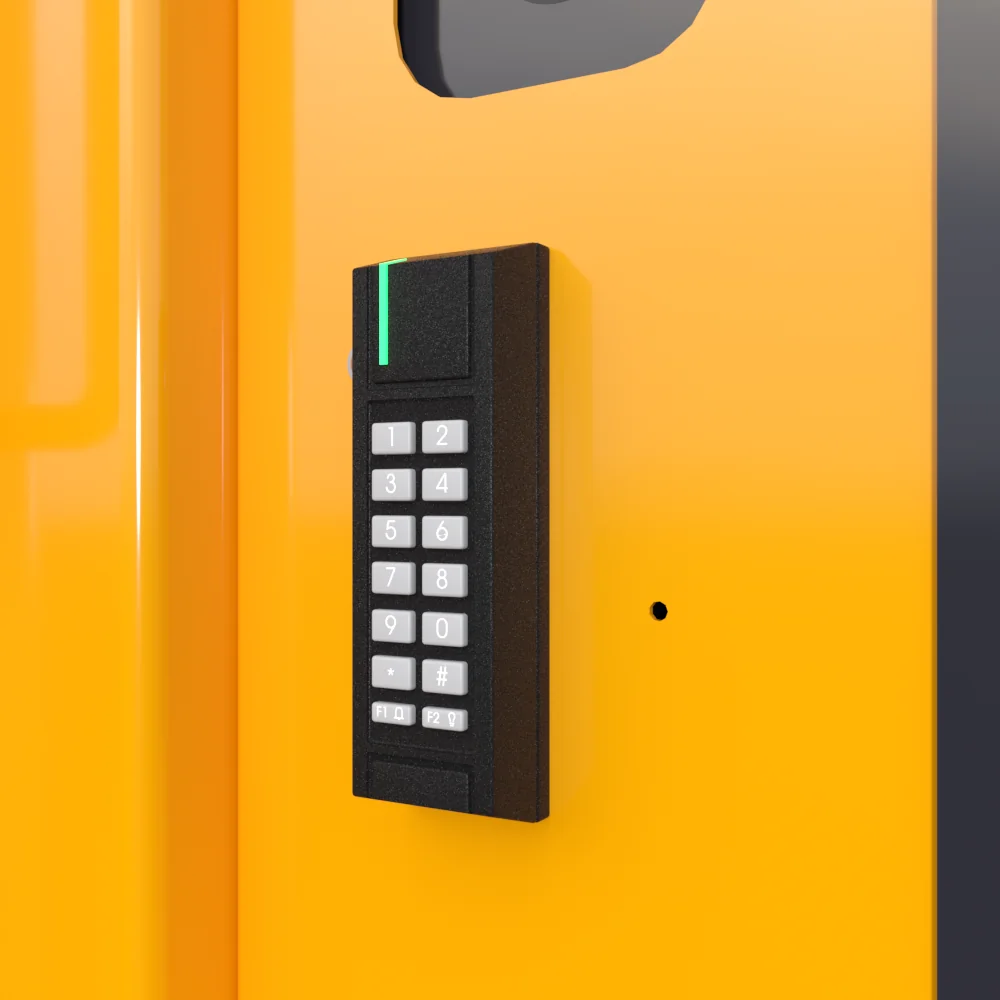

The auto lock lets you decide who can use your baler. Everyone can load it, but it requires a PIN code or a personal key tag to run press cycles.
Block access to baler controls with auto lock

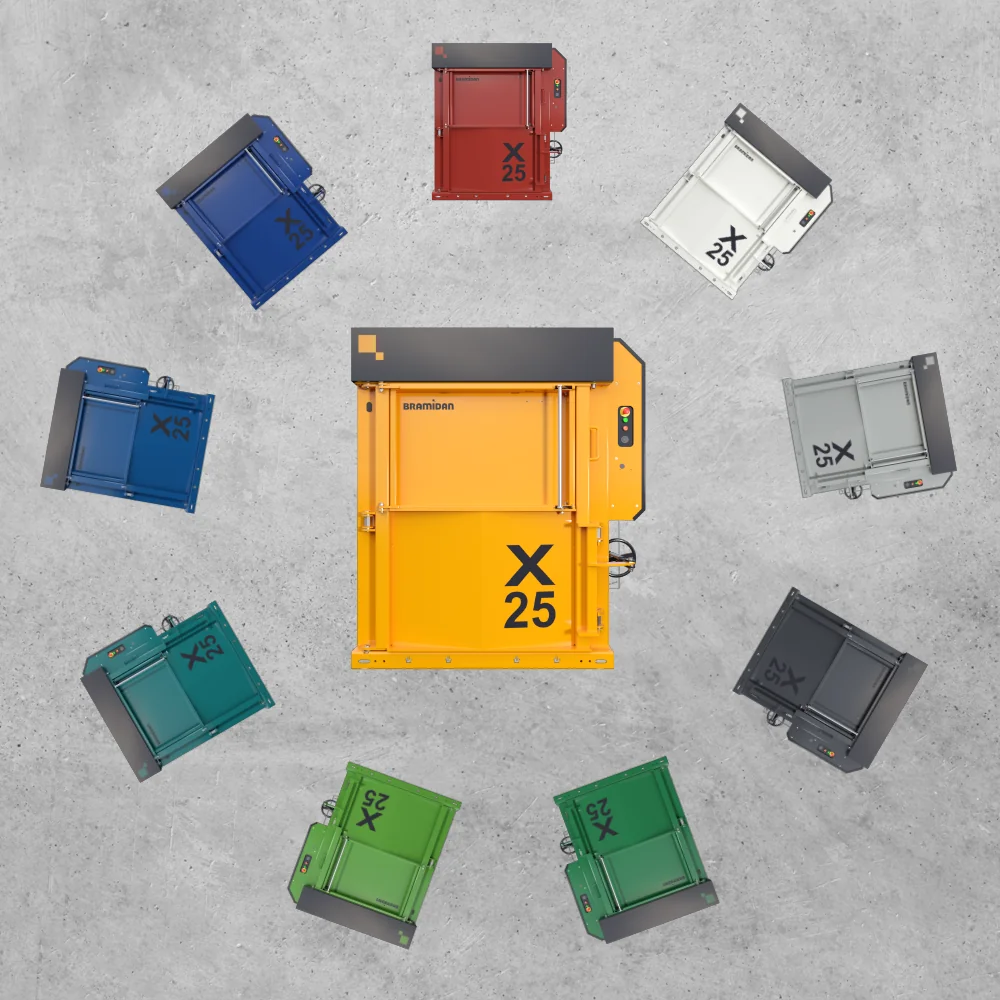

Choose a new baler colour among any RAL colour. The grey coloured top and side hood, press plate, and spindle cannot be customized.
Balers in custom colours

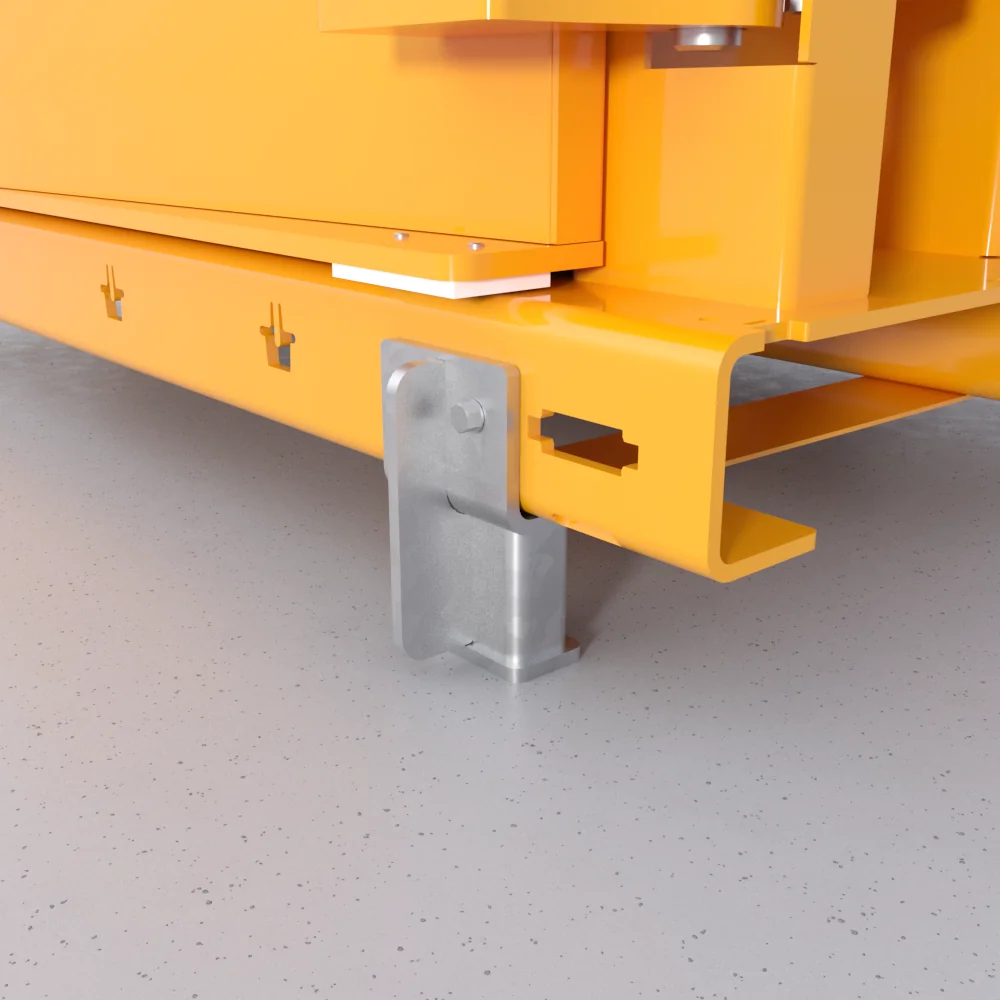

Install feet under your baler to lift it from the ground. Ideal if you need to lift the baler from the front instead of from the side.
Baler feet lets you lift your baler from the front
Quote details
VERTICAL BALER
Baler B5 Wide
Overview
How to operate
Safety
Technical specifications

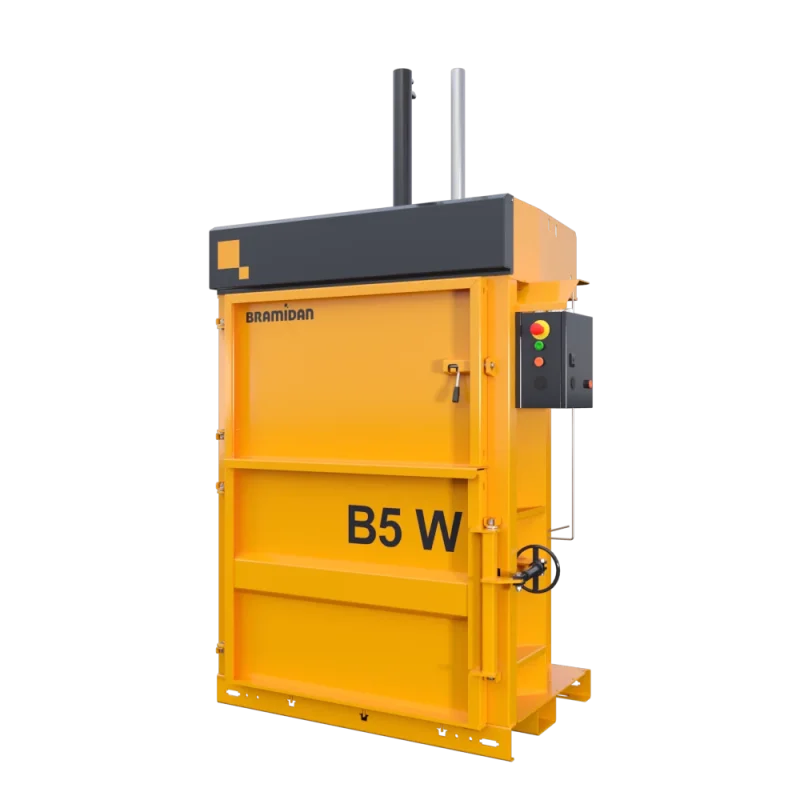

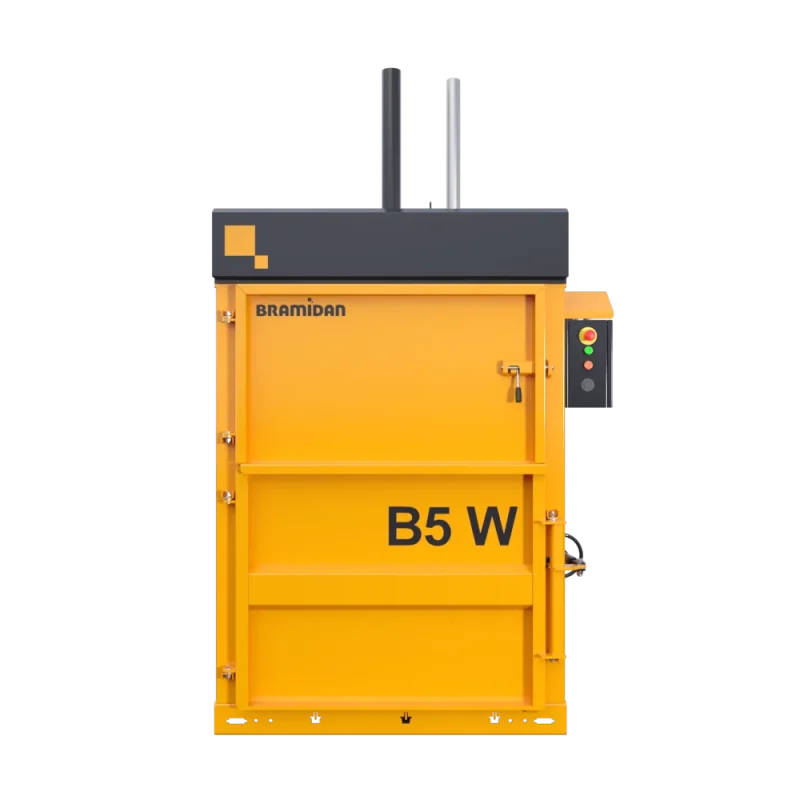

For large and bulky materials
An extra wide baler designed to handle large and bulky materials. The largest boxes can be thrown right in without being broken down.
Easy installation and wide application
This baler operates on a single phase power supply, which makes it easy to install in a wide variety of environments.
B5 Wide – Perfect for handling large boxes:
- High capacity – large output
- Wide filling opening (1 metre)
- Efficient retainers hold compressed material down
- The bale is tipped out automatically
- Front-placed strap rolls for easy strap change
- Operates on single phase power supply
- Complies with EU Safety Standard EN16500
- Powder Coating provides durable finish in many colors.
How does the B5 Wide baler work?
Time-saving and easy waste handling
- Fill your plastic or cardboard waste into the baler.
- A full-light indicator tells you when the chamber is full.
- Tie off and eject the finished bale.
- Remove the bale and store until collection.
The B5 Wide baler is safe and easy to operate:
Our machnies has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 80-110 |
| Bale weight plastic foil (kg) | 90-130 |
| Press force (t) | 5 |
| Power supply | 1x230V 50Hz 10A |
| Motor (kW) | 1.1 |
| Noise Level (dB) | 65-68 |
| Cycle time avg. (sec) | 33 |
| Dimensions WxDxH (mm) | 1360 x 895 x 2370 |
| Weight (kg) | 600 |
| Feed opening WxH (mm) | 1000 x 500 |
| Filling height (mm) | 915 |
| Chamber height (mm) | 1305 |
| Stroke (mm) | 750 |
| Number of ties | 3 |
| Type of tying | Twine |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Small |
Waste types
Waste Volume
Small
FEED OPENING
1000 x 500 mm
BALE SIZE
1000 x 700 x 800 mm
PRESS FORCE
5 t
BALE WEIGHT
Cardboard (kg) : 80-110Plastic foil (kg) : 90-130
Save money and reduce your CO2e with BRA-IN
Recycling is essential for the environment, and BRA-IN makes it easier. This intelligent waste management solution monitors, analyses, and optimises your operations to help you save costs and reduce emissions.
BRA-IN (short for Bramidan Intelligence) connects all your compaction equipment through a user-friendly IoT platform. It provides a complete 360-degree view for more intelligent waste and recycling management.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
which can be harmful over time. Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
B5 Wide
65-68 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER B5 Wide
Most Common Questions & Answers
What can I compact in the Bramidan B-series balers?
Our B-series balers can compact cardboard, paper, and dry soft plastic.
We always recommend that you consult with a member of our sales team before you start compacting other materials in the baler.
Can your machine weigh the bales for me?
Our machines do not have a built-in scale. However, the bale size and bale weight do not fluctuate a lot and will typically always be the same.
Additionally, we offer our BRA-IN monitoring solution, where you can access the bale production of your baler and create reports for recycling compliance. That way you know how big and how many bales you produce every week or month.
What kind of technology do you offer for fleet monitoring?
We have our BRA-IN solution. A web portal for intelligent fleet monitoring based on data collected from a modem in your baler or compactor.
With BRA-IN you can:
• Get in control of your fleet of machines
• Receive a text message or email when a baler is full
• Advise your recycler directly about bales ready for collection or container to be emptied
• Tracking of the number of bales you produce over time
• Save time and money with remote service and troubleshooting
• Calculate on your Total Cost of Ownership
How much noise does a baler make?
Our balers are generally very silent. They can be placed directly in the working environment without any negative affect.
The noise level of our B-series balers is very low. They never exceed 57-68 decibels – the equivalent of an air conditioning system or a vacuum cleaner.
However, for whisper low noise level, try our range of X-series balers. They have extra low noise level that never exceeds 59 decibels. The same as conversational speech.
Is the surface of your balers durable?
All our machines are treated with a high quality, anti-rust coating to strengthen and protect the surfaces and prevent flaky paint and rust.
Do you have balers in other colours?
Yes, we do, but other colours are special orders and will come at a higher cost.
The colour of our balers is a safety benefit. According to basic human bio psychology, yellow captures our attention more than any other colour. The yellow colour of our balers means that they are very easy to see in any type of working environment, which reduces the risk of accidents.
Did you find an answer to your questions? If not visit our FAQ universe.
