VERTICAL BALER

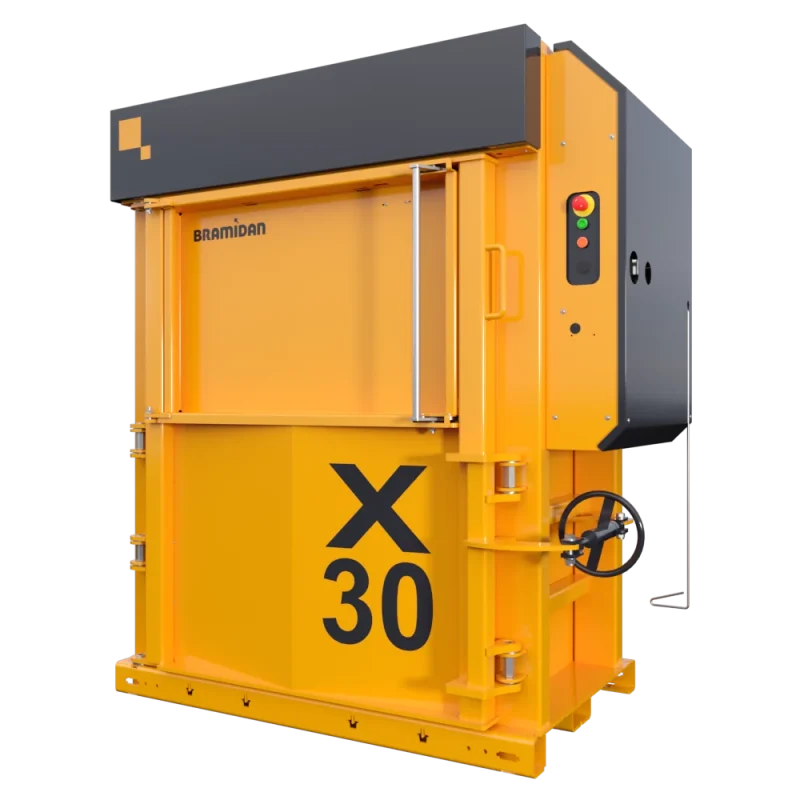

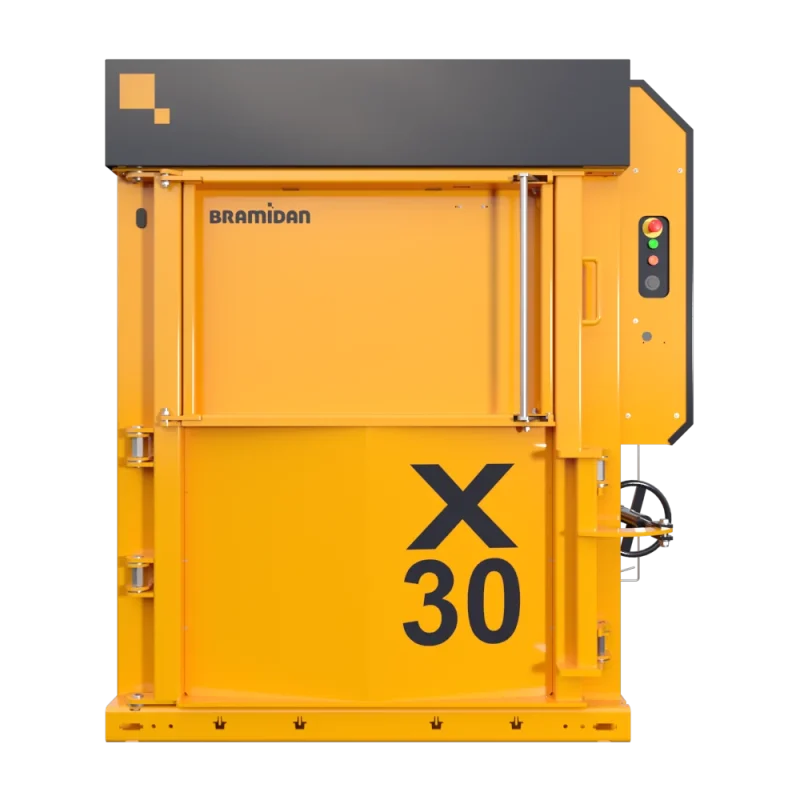

Baler X30 LP
Model X30 LP is very easy to install due to the compact design. At the same time it is a high capacity machine because of the strong press force of 30 tons.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler X30 LP
BRA-IN is a data based communication service. Access live status of your machines and receive immediate notification if a baler needs attention.
Intelligent baler data collection reduces baler downtime
Choose a new baler colour among any RAL colour. The grey coloured top and side hood, press plate, and spindle cannot be customized.
Balers in custom colours

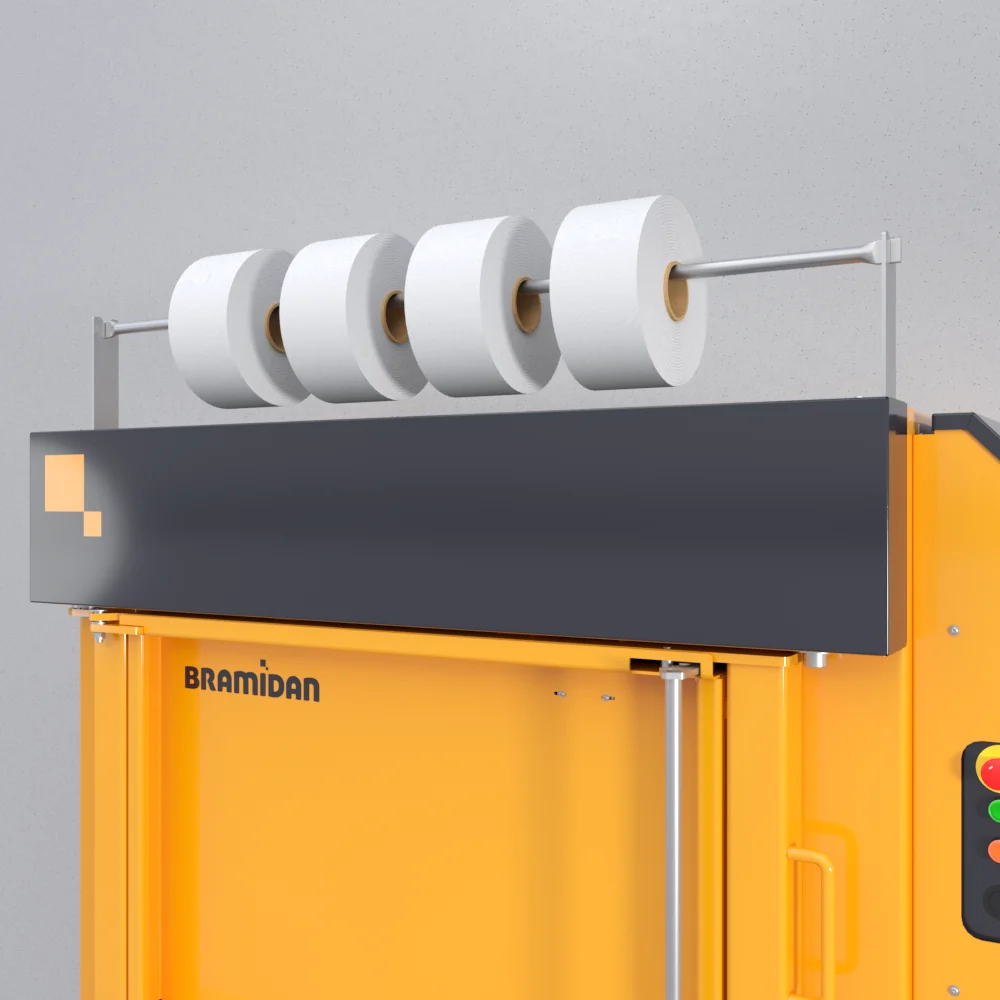

Install your baler up against the wall with top-mounted strap holder. You don’t have to go behind the baler to exchange rolls or pull straps for a new bale.
Top-mounted strap holder gives you close-to-wall baler installation
Keep the door open in a fixed position of 180 degrees with a door stop.
Door stop holds the door for you

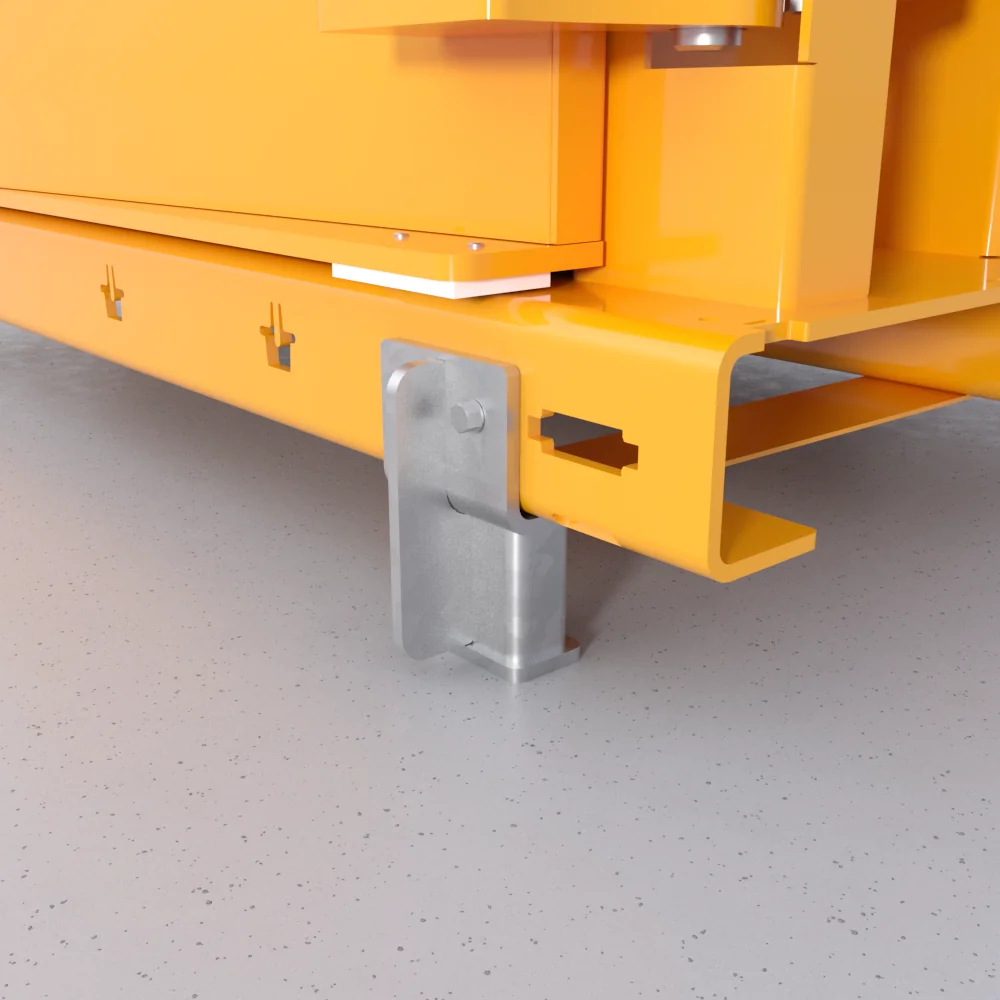

Lift the baler from the ground for easy cleaning underneath or manoeuvring into a narrow space.
Baler feet lift your baler from the ground

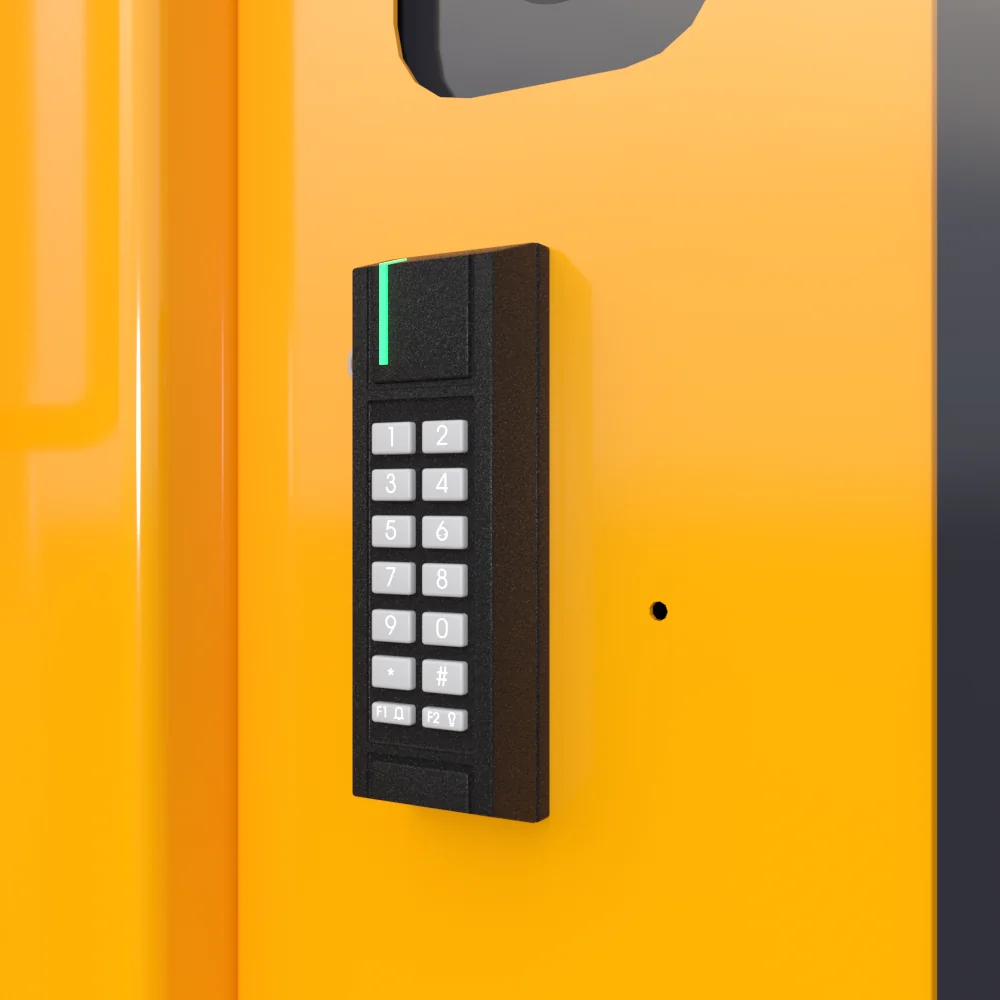

The auto lock lets you decide who can use your baler. Everyone can load it, but it requires a PIN code or a personal key tag to run press cycles.
Block access to baler controls with auto lock
Quote details
VERTICAL BALER
Baler X30 LP
Overview
How to operate
Safety
Technical specifications
Handle high waste volumes
Fast cycle time, wide filling opening and superior press force make it possible to handle high waste volumes in short time.
Easy to fit in where you like
With an overall height below 2 meter, it is easy to install this baler anywhere you like. Strong cross cylinders and a heavy duty design make this a very durable machine.
X30 LP – high capacity baler:
- For many different recyclables
- Low overall height
- High press force
- Very low noise level
- High speed and high effeciency
- Powder Coating provides durable finish in many colors
How does the X30 LP baler work?
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
The X30 LP baler is safe and easy to operate:
Our machnies has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 225-325 |
| Bale weight plastic foil (kg) | 275-375 |
| Press force (t) | 30 |
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 4.0 |
| Noise Level (dB) | 59-60 |
| Cycle time avg. (sec) | 25 |
| Dimensions WxDxH (mm) | 1760 x 1255 x 1995 |
| Weight (kg) | 1450 |
| Feed opening WxH (mm) | 1090 x 530 |
| Filling height (mm) | 1240 |
| Chamber height (mm) | 1380 |
| Stroke (mm) | 950 |
| Number of ties | 4 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Medium |
Waste Volume
Medium
FEED OPENING
1090 x 530 mm
BALE SIZE
1200 x 800 x 800 mm
PRESS FORCE
30 t
BALE WEIGHT
Cardboard (kg) : 225-325Plastic foil (kg) : 275-375
Save money and reduce your CO2e with BRA-IN
Recycling is essential for the environment, and BRA-IN makes it easier. This intelligent waste management solution monitors, analyses, and optimises your operations to help you save costs and reduce emissions.
BRA-IN (short for Bramidan Intelligence) connects all your compaction equipment through a user-friendly IoT platform. It provides a complete 360-degree view for more intelligent waste and recycling management.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
which can be harmful over time. Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
X30 LP
59-60 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER X30 LP
Most Common Questions & Answers
How do I know which baler model I need?
What type of equipment you need depends on a number of factors: How much waste you (approx.) generate daily, what material it is, and the volume of the material. Next step is to find out how much space you have for a waste solution.
This information, combined with your company’s structure and internal work processes, forms the basis for which tailored waste solution is the perfect fit for you and your company.
Our dedicated team of specialists can help you with this decision.
What can I compact in the Bramidan X-series balers?
Our X-series balers can compact many different materials. Besides cardboard, paper, and dry soft plastic, they can also be used for big bags, plastic bottles (PET), expandable plastic, aluminium and tin cans.
Please contact our sales team before you compact other materials in your baler.
Is a baler difficult to operate?
No, our machines are very easy and simple to operate.
Just press a single button to start the automatic press cycle and walk away. Use the threaded spindle to open the lower hatch when the bale is finished. With our unique pre-load strapping system, tying the bale is also a very simple manoeuvre.
Can I compact PET bottles?
Yes, you can. Our X-series balers can compact PET bottles.
PET material is widely known from soft drink and water bottles, but you will also find PET material used for e.g. drinking cups and smaller food containers.
Before compacting plastic bottles, you need to perforate them or take off the lids. If you don’t, the bottles will contain a lot of air and the bale will not be as tight and compact.
To make the finished PET bale more stabile when compacting in a vertical baler, we recommend that you put a layer of cardboard at the bottom and on top of the finished bale.
Where should I install my machine?
Your internal work processes, the waste flow in your company and the available data on your current waste handling will help determine the best place to install your machine. What’s important is that you place the baler so that you can sort and compact your waste at the waste source.
Our sales consultants can help you with finding the best location for your baler.
Do you have balers in other colours?
Yes, we do, but other colours are special orders and will come at a higher cost.
The colour of our balers is a safety benefit. According to basic human bio psychology, yellow captures our attention more than any other colour. The yellow colour of our balers means that they are very easy to see in any type of working environment, which reduces the risk of accidents.
