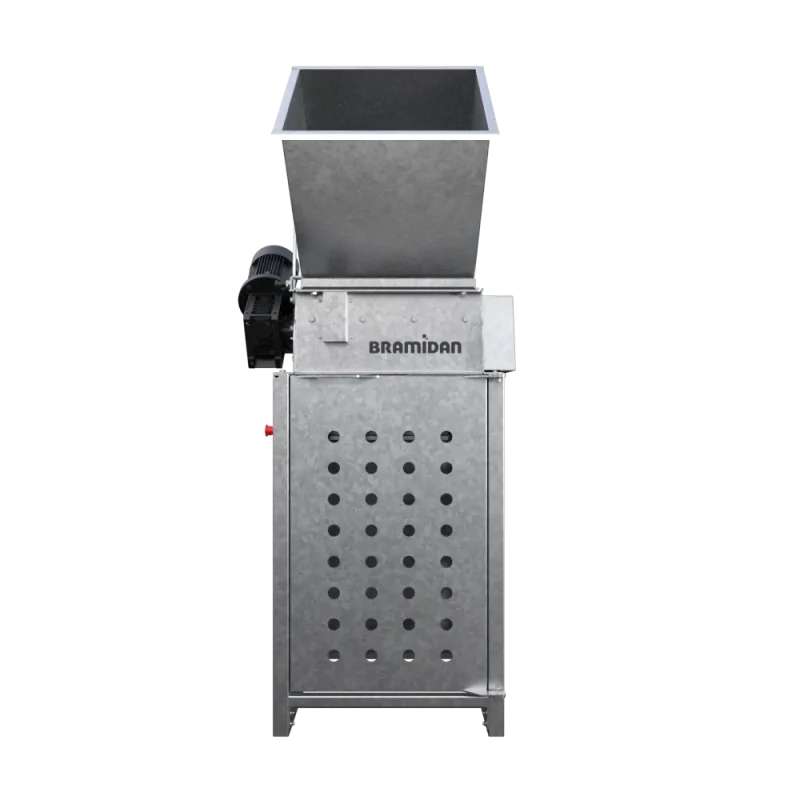

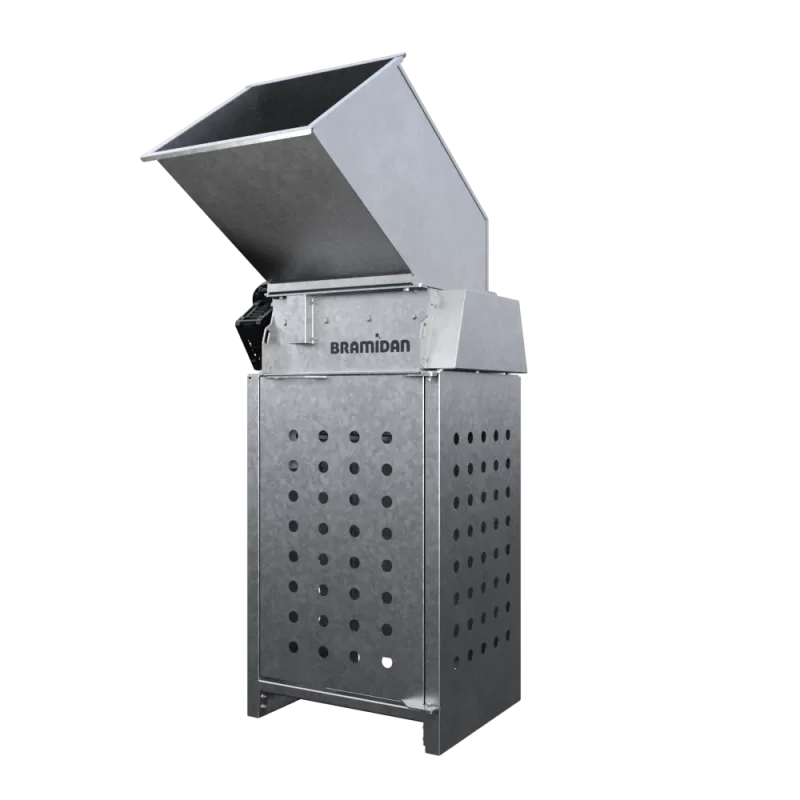

EPS Granulator Galvanised
EPS Granulator Galvanized
The EPS granulator EG is designed for granulating EPS material and reduce volume in ration 3:1. Suitable for industrial companies and retail stores with bulky EPS waste material.
Add to your quote
EPS Granulator Galvanised
EPS Granulator Galvanized
Quote details
EPS Granulator Galvanised
EPS Granulator Galvanized
Overview
How to operate
Safety
Technical specifications
Reduce volume by a third
The granulator reduces the volume of bulky EPS material by a third by turning the material into fine granulates.
For challenging or wet environments
This granulator is especially suitable for environments where there are no special hygienic requirements for stainless steel, but where demands on machine surface are so severe that an ordinary painted granulator will have a short lifetime.
EPS Granulator – reduce the volume of bulky EPS:
- Adjustable capacity to meet individual needs
- In-chamber plastic bag collects granulates
- Bag is easy to change when full
- Takes up little space
- Low overall height
- Galvanized surface
How does the EPS Granulator work?
Easy volume reduction of EPS material
- Place the bulky EPS material into the loading hopper.
- Press the green start button to begin the process.
- The machine will run for a pre-set length of time.
- When the collection bag is full, remove and replace it with a new bag.
The EPS Granulator is safe and easy to operate
Our equipment has the highest level of safety – don’t settle with less!
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 1.5 |
| Noise Level (dB) | 70 |
| Dimensions WxDxH (mm) | 1000 x 1400 x 2120 |
| Weight (kg) | 235 |
| Feed opening WxH (mm) | 548 x 552 |
| Filling height (mm) | 1790 |
| Compaction ratio | 1899-12-31 |
| Waste volume | Small / Medium |
Save money and reduce your CO2e with BRA-IN
Recycling is essential for the environment, and BRA-IN makes it easier. This intelligent waste management solution monitors, analyses, and optimises your operations to help you save costs and reduce emissions.
BRA-IN (short for Bramidan Intelligence) connects all your compaction equipment through a user-friendly IoT platform. It provides a complete 360-degree view for more intelligent waste and recycling management.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
which can be harmful over time. Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
EPS Granulator
70 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
EPS Granulator Galvanised EPS Granulator Galvanised
Most Common Questions & Answers
Can polystyrene be recycled?
Many people are not aware that polystyrene is recyclable. But it actually is very easy to recycle.
High density compressed polystyrene is easy to process into new plastic or foam products. Polystyrene is reused in almost every plastic product imaginable, from mobile phones, speakers, TVs, and toys. Reusing polystyrene is much cheaper – and more environmentally friendly – than producing new plastic.
This means that polystyrene is a very sought-after commodity that is very popular in e.g. China where a lot of plastic is needed for production.
What is a polystyrene or EPS granulator?
An EPS granulator divides the polystyrene into fine granulates. This reduces the volume of the polystyrene by a third.
The granulator is fitted with a bag inside the machine that collects the granulates. The bag is easy to dispose of in your container.

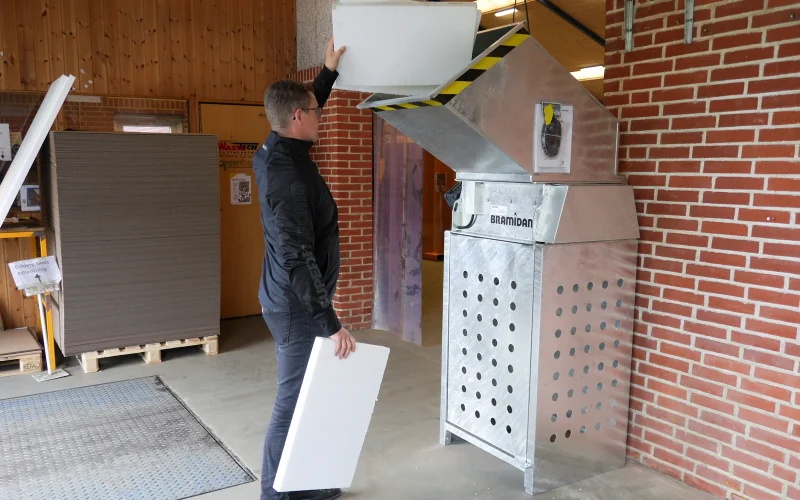

Why is the granulator filling placed so high that I have trouble reaching it?
The high filling opening is a matter of safety. It protects you from getting in contact with the crusher.
What type of polystyrene can I throw into a granulator?
As a rule of thumb, you can granulate all types of polystyrene that you can break with your hands.
For polystyrene products that are more heavily compressed, e.g., insulating plates containing fire-retardant additives, XPS, or damp EPS, you must use a screw compactor.
How large pieces of polystyrene can the granulator handle?
The granulator can handle even very large pieces of EPS without you need to break them down first. The filling screen measures 548 x 552 mm.
How does the granulator turn polystyrene boxes or plates into granulates?
The machine is fitted with a crusher. The crusher contains two shaft rotors. These rotate in high speed and in opposite directions and thereby efficiently cut the material into granulates.
Did you find an answer to your questions? If not visit our FAQ universe.
